Tube Mount

7,000 lb Capacity

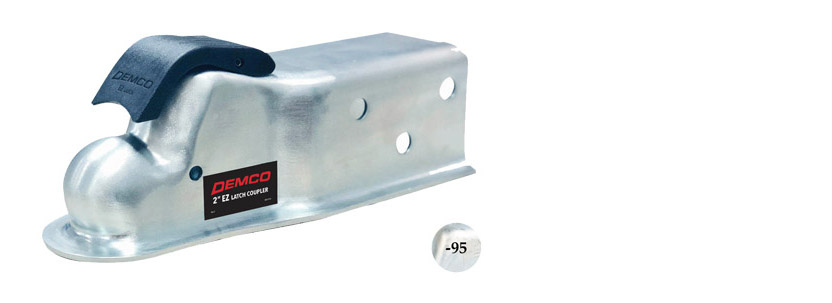

15945 - Demco Tube Mount EZ-Latch Coupler - 3 Hole Bolt Pattern

This straight-tongue coupler is built from durable steel and has a corrosion-resistant zinc coating rated for 200-hour salt spray protection. The EZ-Latch mechanism delivers fast, secure hook-up and easy release. It is designed to bolt onto a 3" wide trailer tongue using a 3-hole bolt pattern.

Weight capacity: 7,000 lbs
Ball size: 2”
Application: 3” wide channel tongue
Weighs: 8 lbs
1-Year warranty

15945 Zinc

10,000 lb Capacity

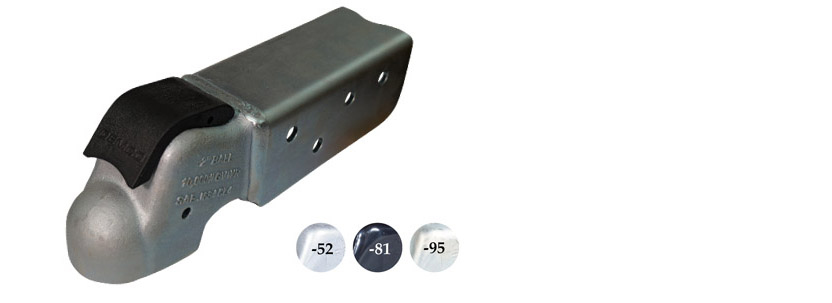

17427 - Demco Tube Mount EZ-Latch Coupler - 4 Hole Bolt Pattern

The straight-tongue coupler is built from heavy-duty steel and has a corrosion-resistant finish for lasting protection. The EZ-Latch system provides quick, secure hook-up and easy disconnect. It is designed to fit a 3" wide trailer tongue with a 4-hole bolt-on configuration.

Weight capacity: 10,000 lbs
Dimensions: 13-1/8" x 3-1/2" x 4-1/2"
Ball size: 2”
Application: 3” wide trailer tongue
Weighs: 8 lbs
1-Year warranty

17427-52 Silver
17427-81 Black
17427-95 Zinc

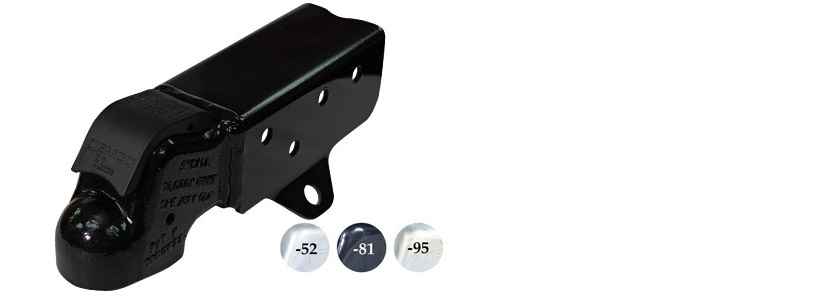

17429 - Demco Tube Mount EZ-Latch Coupler - with Chain Anchor

Weight capacity: 10,000 lbs
Ball size: 2”
Application: 3” wide trailer tongue
Weighs: 8 lbs
1-Year warranty

17429-52 Silver
17429-81 Black
17429-95 Zinc

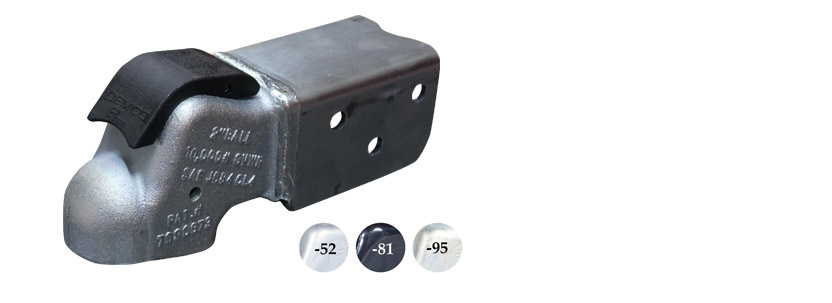

17436 - Demco Straight-Tongue EZ-Latch Coupler - 3 Hole Bolt Pattern

Weight capacity: 10,000 lbs
Ball size: 2”
Application: 3” wide trailer tongue
Weighs: 7 lbs
1-Year warranty

17436-52 Silver
17436-81 Black
17436-95 Zinc

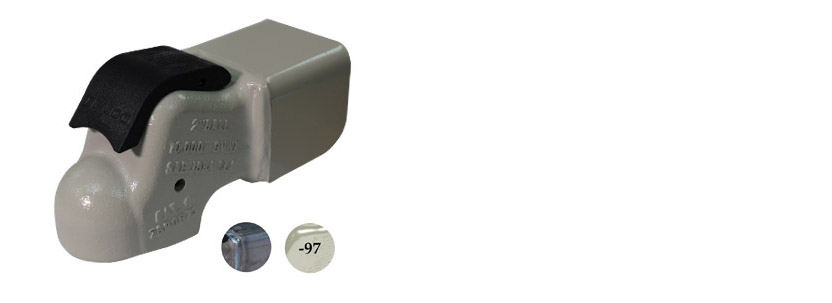

17961 - Demco Tube Mount EZ-Latch Coupler - Weld on

The straight-tongue coupler is built from heavy-duty steel. The EZ-Latch system provides quick, secure hook-up and easy disconnect. It is designed to weld onto a 3" wide trailer tongue.

Weight capacity: 10,000 lbs
Ball size: 2”
Application: 3” wide trailer tongue
Weighs: 7 lbs
1-Year warranty

17961
17961-97 Primed
